Xiamen Tianma G6 LTPS TFT-LCD & CF Project
This is the 1st line of G6 LTPS line for Tinama in China. The requirement of DI water quality is 18 MΩ.CM and the output is 1100 cm3/h. We supplied PP clean for UPW system, piping size is from od20mm – od280mm. We also supplied PP standard piping for WWT & PDS system. The total piping length is over 13,000 meters. The end user was very satisfied with AGRU products.
-
PP Spraying Piping System in FGD Tower for Thermal Power Plant
SP chemical (Taixing) Co., Ltd. is a wholly owned subsidiary of Singapore SP Chemical Pte Ltd. The current production capacities for caustic soda, vinyl chloride monomer, styrene monomer, nitrobenzene and aniline are 750,000 tones, 500,000 tones, 320,000 tones, 185,000 tones and 130,000 tones. And they have their own thermal power plant.
-
Ningxia Hening Chemical Co., Ltd. Waste Water Tank
HDPE CPL lined concrete tank was use for the storage of waste water which contains low concentration of acid. The mechanical connection between the CPL and concrete insured the durability of the tank. The connection between the HDPE CPL sheets was achieved by extrusion welding. And all the welding joints all passed the by sparkling test.
-
ECTFE-GK Sheets for Jincheng Petrochemical Flue gas ducts
Installation Date: 2016
Product: ECTFE fabric backed sheets 2.3mm
Application Area: ECTFE/FRP Duct
Description: Clean gas outlet duct from WSA Condenser
Pipe dimensions: 1800 mm diameter, 150 m length
Temperature: 95°C (operation), 120°C (design)
Medium: Flue gas, 10 kpa design pressure
Process Treatment: Alkylation spent acid regeneration
Process Gas Flow: 100,000 Nm3/h
Engineering: Haldor Topsoe & Tialoc
Location: Zibo city, Shandong Province, China
Industry: Refinery/petrochemical
-
ECTFE Lining FRP Stack & Exhaust Pie
In the chimney and ventilation ducts SO2 and SO3 react to produce high concentrations of H2SO3 and H2SO4 with high temperatures. ECTFE has an excellent chemical resistance against all kinds of acids. That’s why the customer chose ECTFE. The integrated glass fiber provides a high bonding strength with the FRP, which ensures the safe operation of the system even under vacuum.
-
AT&S Chongqing HDI PCB Project
AGRU supplied PP pipes and fittings for WWT system, HDPE pipes and fittings for PDS, PPs pipes, fittings & valves for the ventilation system. PPs piping which bigger than 315mm are machined from our PPs sheets. AGRU
-

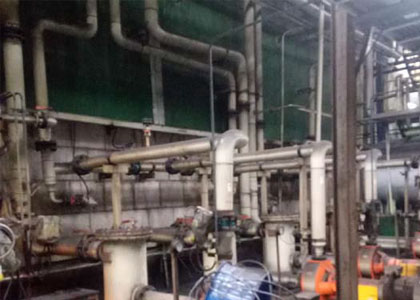

Yieh Phui 1 Million tons pickling and cold-rolling Project
AGRU supplied all PP & PVDF pipes & fittings for this project. For > 355mm ventilation pipes are machined from our PPH sheets. The pictures are 2 years after installation and no problems.
